| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, Saa |
| Model Number: | RGL-180A |
| Price: | $10.00 - $302.00/Pieces |
|---|---|
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):263*263*155 <br>3.One 20'' Container can accept 250 Units |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Color Temperature(CCT): | 2000K - 6000K, 2000K - 6000K | Lamp Luminous Efficiency(lm/w): | 120, 120 |
|---|---|---|---|
| Color Rendering Index(Ra): | 80 | Support Dimmer: | YES |
| Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 13 |
| Input Voltage(V): | 80 ~360Vac | CRI (Ra>): | 75 |
| Beam Angle(°): | 60 /120 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum Alloy | IP Rating: | IP66 |
| Application: | Sports Stadiums, Billborad | Light Source: | LED |
| Lamp Luminous Flux(lm): | 21600 Lm, 21600 Lm | Working Temperature(℃): | -40C ~ 60C / -40F ~ 140F, -40C ~ 60C / -40F ~ 140F |
| Warranty(Year): | 5-Year | Product Name: | Led Stadium Flood Light |
| Power: | 180w | Warranty: | 5Years |
| Color: | Cool White | Housiong Material: | Aluminum |
| Port: | Tianjin | ||
| Highlight: | 6000K Indoor Dimmable Led Flood Light,Anti Glare Dimmable Led Flood Light,180w led flood light 300w ip66 |
||

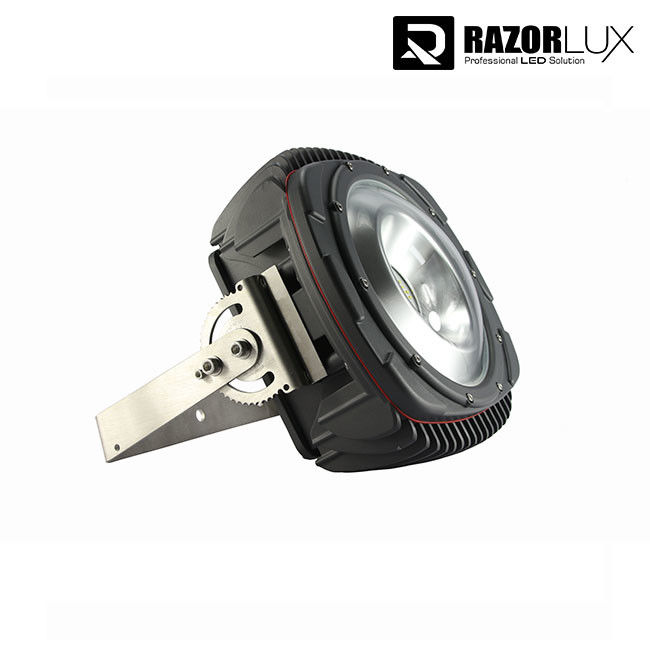

This LED flood light 100 watt emits a wide 120° beam of cool or natural white illumination for landscape lighting, parking lot lighting, tree uplighting, flagpole lighting, and architectural wall washing. It replaces 250-watt metal-halide (MH) lights with comparable output.
The weatherproof LED fixture is constructed of heavy-duty die-cast aluminum with an integral heat sink and a tempered glass lens. This LED floodlight is also equipped with a UL-Recognized constant-current driver. An adjustable yoke mount allows you to direct illumination where it’s needed. The LED floodlight is designed to last 3 times longer than MH fixtures.
|
Model
|
|
RGL-180A
|
|
|
Beam Angle
|
|
60°
|
|
|
Stable Flux(5700K after 1 hour)
|
|
21600 lm
|
|
|
Dimension (mm)
|
|
360x358x187mm
|
|
|
|
LEDs
|
162W
|
|
|
Power
|
Driver
|
18 W
|
|
|
Consumption
|
Total
|
180W
|
|
|
Replace HID Lamp
|
|
400-500W
|
|
|
Net Weight
|
|
8kg (17.6lbs)
|
|
|
Color Temperature
|
|
2000K - 6000K
|
|
|
Color Rendering
|
|
≥Ra75 (≥Ra80, ≥Ra90 available on request)
|
|
|
Working Life
|
|
≥50000Hrs
|
|
|
Housing Material
|
|
Aluminum
|
|
|
Coating
|
|
Powder Coating
|
|
|
IP Class
|
|
IP 65 (Upgradeable to IP 67)
|
|
|
IK Class
|
|
IK 10
|
|
|
Insulation Class
|
|
Class I
|
|
|
Working Temperature
|
|
-40C ~ 60C / -40F ~ 140F
|
|
|
Working Humidity
|
|
10% ~ 95%
|
|
|
AC Input
|
|
80 ~ 315Vac, (347Vac available on request)
|
|
|
DC Input
|
|
80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request)
|
|
|
THD
|
|
<10%
|
|
|
Power Factor
|
|
≥0.98
|
|
|
|
LED Module
|
5 years
|
|
|
|
Driver
|
5 years
|
|
|
|
Housing
|
10 years
|
|
|
Features:
|
|
1. Top performance LED chips, 120 lm/w system efficacy
|
|
2. Wide Power range: 270W
|
|
3. Universal input 80-360V. (DC12V 24V 48V AC347V available)
|
|
4. Patent Built-in Surge Protection.
|
|
5. Patent Built-in Thermal Protection.
|
|
6. IP67 waterproof, IK10 impact-proof
|
|
7. Neutral Salt Spray Resistance
|
|
8. Anti-Corression power coating surface treatment
|
|
9. Stainless steel brackets material. (Upgradable to SS316)
|
|
10. DALI/Photocell/Microwave Motion control available.
|
|
11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed
|
|
12. World Top 500's supplier.
|
|
Model
|
G.W
|
|
Genius Compact 30-270W A Series
|
11KGS
|
|
Genius Compact 30-270W P Series
|
15KGS
|
|
Genius Standard 210-400W A Series
|
20KGS
|
|
Genius Standard 210-400W P Series
|
25KGS
|
|
Genius Ultra 600-1000W A & P Series
|
39KGS
|
FAQ:
Where can your floodlights be used?
Our Floodlights are used in range of settings but are mainly used as outdoor lighting fixtures. They are used for domestic and business security, to highlight building architecture or landscapes, in retail to highlight the sign or name of the company and to light up the field, court and surrounding area at sporting venues and car parks
What is the wattage of Your LED floodlights?
We have board range from 30W to 1200W, which is equivalent to a 100W ~ 4000W HID lamp, suit for customer's every application need. From indoor commercial lighting to heavy duty area, and mining, marine lighting.
Are LED floodlights like spotlights?
Spotlights have a narrower beam angle and are used for lighting up smaller areas or objects. In our category we call it P series, which come with 15, 20, and 30 degree beam angle. Floodlights have a wider beam we have options like 40, 60, 120, and 140 degree and are used to light up larger surface areas.
How energy-efficient are Razorlux LED Flood lights?
Our LED Flood lighting can save up to 90% of the electricity used by incandescent and halogen lights and up to 50% of electricity used by fluorescent lights.
Where are LED lights being used?
LED lights are being used where the lighting is on for a long time such as Sports fields, High Mast, Tunnel Light, Boat Light, shops, factories, auto dealerships and outdoor lighting.
