| Place of Origin: | Xi'an China |
| Brand Name: | Led Building Light |
| Certification: | SAA,CE,TUV |
| Model Number: | RGL-500F |
| Minimum Order Quantity: | 1 UNIT |
|---|---|
| Price: | 400-800 USD |
| Packaging Details: | 1 unit/carton |
| Delivery Time: | 10-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000 pcs per month |
| Light Source: | LED | Housing Material: | Aluminun |
|---|---|---|---|
| Working Temperature(℃): | -40 - 55 | Emitting Color: | Full Spectrum |
| Size: | 500*388*187 Mm | Beam Angle: | Spot Beam |
| Application: | Hotel | Bracket: | Stainless Steel |
| Finish: | Anti-corrosion Powder Coating | IP Grade: | IP66 |
| Warranty: | 5 Years | Lens: | PMMA+Glass |
| Working Hours: | 50,000 Hours | ||
| Highlight: | 500W Dimmable Led Flood Light,IP66 Building Dimmable Led Flood Light,10 Degrees Angle wall washer spotlight |
||
| 1. Top performance LED chips, 120 lm/w system efficacy |
| 2. Wide Power range: 500W |
| 3. Universal input 90V-305VAC 47-63 Hz |
| 4. Patent Built-in Serge Protection. |
| 5. Patent Built-in Thermal Protection. |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. DALI/Photocell/Microwave Motion control available. |
| 11. World Top 500's supplier. |

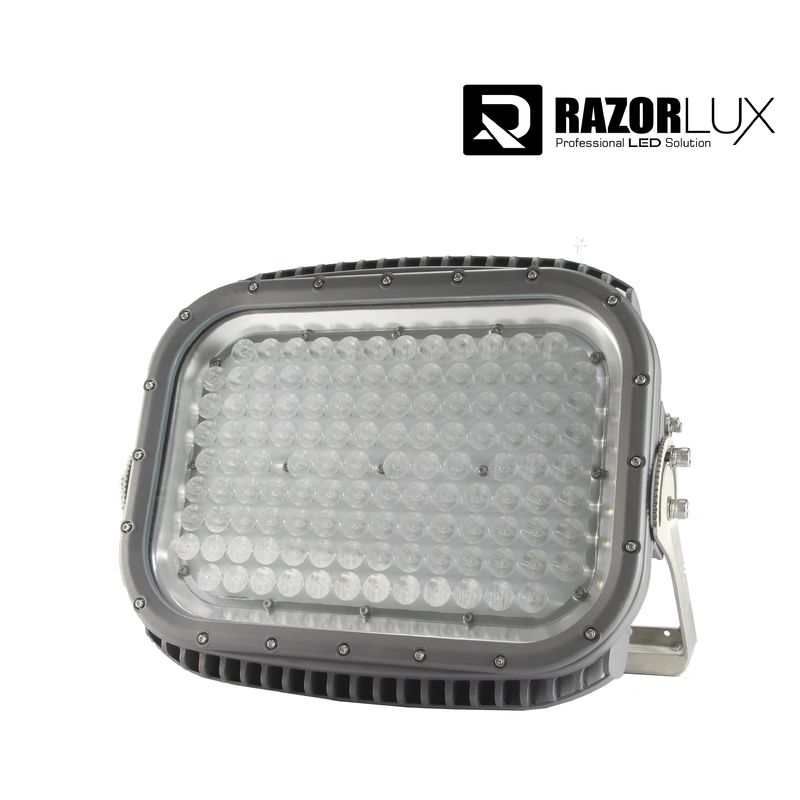

| Photos of Razorlux LED Building Light: |
| Parameter of Razorlux LED Building Light: |
| Model | RGL-500F | |
| Beam Angle | 10° | |
|
Stable Flux (5700K after 1 hour) |
55000 lm | |
| Dimension (mm) | 500X388X187 mm | |
| LEDs | 450W | |
| Power | Driver | 50W |
| Consumption | Total | 500W |
| Replace HID Lamp | 800-1000W | |
| Net Weight | 23kg | |
| Color Temperature | 2000K - 6000K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum | |
| Coating | Powder Coating | |
| IP Class |
IP 65 (Upgradeable to IP 67) |
|
| IK Class |
IK 10 |
|
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 55C | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 90V-305VAC 47-63 Hz | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 years |
| Driver | 5 years | |
| Housing | 10 years | |
| Lighting Distribution of LED Building Light: |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 10° beam angle available.
| Razorlux Service: |
| For every piece of Razorlux 90 Watt LED Flood Light are tested in different procedures. |
|
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree) |
|
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment. |
| No. 3 & 4: Dark Room for testing IES files and other Photometric datas. |
1.We are professional led stage lighting factory for eleven years, technology in the industry is come out in front.
2.Our products can be OEM, to meet your special requirements.
3.We have rich experience R&D engineer and we have strong ability for OEM projects.
4.We have wee-trained and professional sales&after- sale services
5.For all your inquires about us or our products, we will reply you in detail within 24 hours.
6.Our advantage are quick delivery, competitive price, high quality and long term service to our customer.
7.There is as long- term cooperation with the shipping company,can make the goods more quickly and efficiently so that can delivered safely to the designated place.
