| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, Saa |
| Model Number: | RGL-30A |
| Price: | $10.00 - $336.00/Pieces |
|---|---|
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):263*263*155 <br>3.One 20'' Container can accept 250 Units |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Color Temperature(CCT): | 6000K (Daylight Alert), Cool White | Lamp Luminous Efficiency(lm/w): | 120, 120 |
|---|---|---|---|
| Color Rendering Index(Ra): | 80 | Support Dimmer: | YES |
| Lighting Solutions Service: | DIALux Evo Layout, Agi32 Layout, Auto CAD Layout | Lifespan (hours): | 50000 |
| Working Time (hours): | 50000 | Product Weight（kg）: | 12 |
| Input Voltage(V): | 80 ~360Vac | CRI (Ra>): | 75 |
| Beam Angle(°): | 60 /120 | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum Alloy | IP Rating: | IP65 |
| Application: | Warehouse, Billborad | Light Source: | LED |
| Lamp Luminous Flux(lm): | 32400, 32400 Lm | Working Temperature(℃): | -40 To 60, -55 - 55 |
| Warranty(Year): | 3-Year | Product Name: | 270w Led Flood Light |
| Power: | 270w | Warranty: | 3Years |
| Color: | Cool White | Housiong Material: | Aluminum |
| Port: | Tianjin | ||
| Highlight: | 270w dimmable outdoor light,6000K dimmable outdoor light,60 degree flood light for basketball court |
||
We are actively engaged in manufacturing, wholesaling, and supplying an extensive range of 60W LED Flood Light for our clients. The offered light is designed by using excellent quality material and advanced technology as per set industry norms. Our offered light can be easily maintained at a low cost. In addition to this, this light is widely acclaimed in the market owing to its energy-efficient and eco-friendly nature.
The 60W is an IP65/IP67/IK10 robust and durable LED Flood Light with high-performance LEDs and a driver.
Manufactured with 4mm thick anti-corrosive aluminum and anti-glare frosted glass, complete with tamper-proof fixings for increased vandal resistance.
| 1. Top performance LED chips, 120 lm/w system efficacy |
| 2. Wide Power range: 30W |
| 3. Universal input 80-360V. (DC12V 24V 48V AC347V available) |
| 4. Patent Built-in Surge Protection. |
| 5. Patent Built-in Thermal Protection. |
| 6. IP67 waterproof, IK10 impact-proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. DALI/Photocell/Microwave Motion control available. |
| 11. DLC, TUV CE RoHS, CB, SAA, LM79 listed |
| 12. World Top 500's supplier. |
| For More of Razorlux LED Lights, pls click the following: |

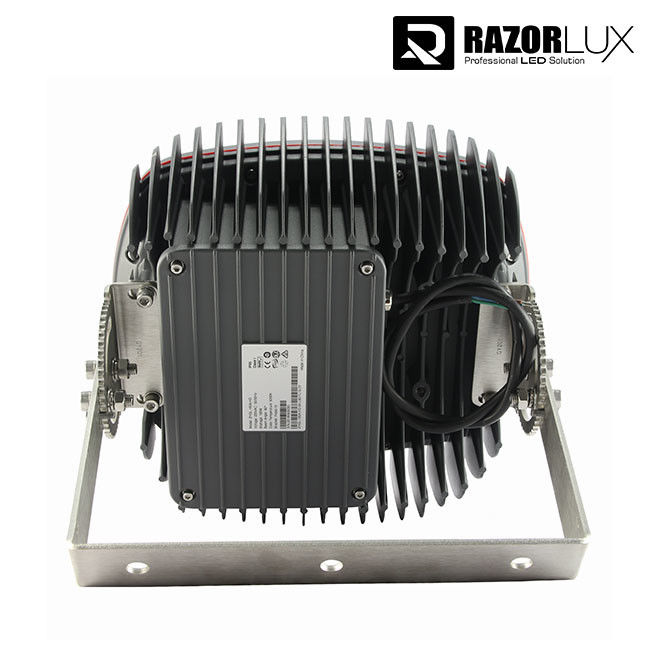

| Photos of Razorlux 270W LED Flood Light: |
| Parameter of Razorlux 270W LED Flood Light: |
| Model | RGL-270A | |
| Beam Angle | 60° | |
|
Stable Flux (5700K after 1 hour) |
32400 lm | |
| Dimension (mm) | 360x358x187mm | |
| LEDs | 243W | |
| Power | Driver | 27 W |
| Consumption | Total | 270W |
| Replace HID Lamp | 600-1000W | |
| Net Weight | 8kg (17.6lbs) | |
| Color Temperature | 2000K - 6000K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum | |
| Coating | Powder Coating | |
| IP Class |
IP 65 (Upgradeable to IP 67) |
|
| IK Class |
IK 10 |
|
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 80 ~ 315Vac, (347Vac available on request) | |
| DC Input | 80 ~ 400Vdc, (12Vdc, 24Vdc and other input available on request) | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 years |
| Driver | 5 years | |
| Housing | 10 years | |
| Lighting Distribution of Razorlux 270W LED Flood Light: |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 60° 120° 140° beam angle available.
Features & Specifications of 270w led flood light for billboard.
| Application of Razorlux 270W LED Flood Light: |
|
Model |
G.W |
|
Genius Compact 30-270W A Series |
11KGS |
|
Genius Compact 30-270W P Series |
15KGS |
|
Genius Standard 210-400W A Series |
20KGS |
|
Genius Standard 210-400W P Series |
25KGS |
|
Genius Ultra 600-1000W A & P Series |
39KGS |
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
| Quality Control - Testing Equipments: |
| For every piece of Razorlux 30 Watt LED Flood Light are tested in different procedures. |
|
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-55 to 55 degree) |
|
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment. |
| No. 3 & 4: Dark Room for testing IES files and other Photometric datas. |
| Quality Control - Aging Department: |
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
| Razorlux Service: |
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
| Razorlux at Lighting Fairs: |
|
Hong Kong International Lighting Fair (Spring Edition) 2014/2015/2016/2017/2018 |
|
Hong Kong International Lighting Fair (Autumn Edition) 2014/2015/2016/2017/2018 |
|
2015 LED Expo in Den Bosch, Netherland |
|
2016 Strategies in Light in Las Vegas, U.S.A |
|
2016 IIDEX in Toronto, Canada |
