| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, RoHS, Saa |
| Model Number: | RGL2-400P |
| Price: | $783.00/Pieces |
|---|---|
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units |
| Input Voltage(V): | 80~305Vac | CRI (Ra>): | 75 |
|---|---|---|---|
| Beam Angle(°): | 15° 20° 30° | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum Alloy | Light Source: | LED |
| Warranty(Year): | 5-Year | Lamp Luminous Efficiency(lm/w): | 120 |
| Lamp Luminous Flux(lm): | 48000lm | Color Temperature(CCT): | Cool White |
| Working Temperature(℃): | -40 - 60 | IP Class: | IP 65 (Upgradeable To IP 67) |
| Highlight: | IP 65 led marine flood lights,75 CRI led marine flood lights,Stainless Steel Bracket marine grade floodlights |
||
Description:

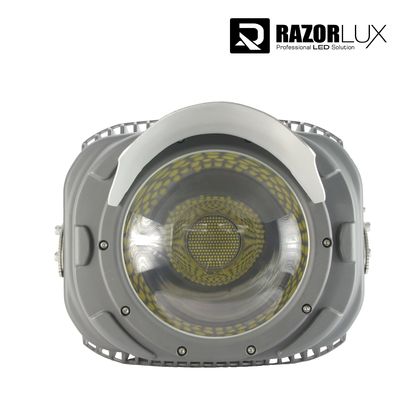

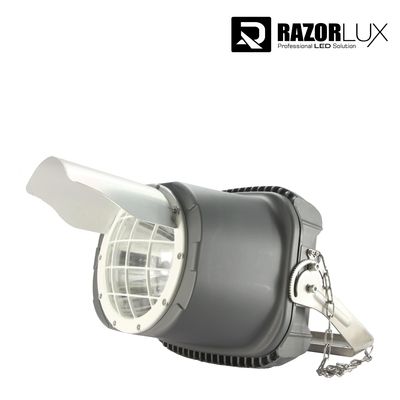

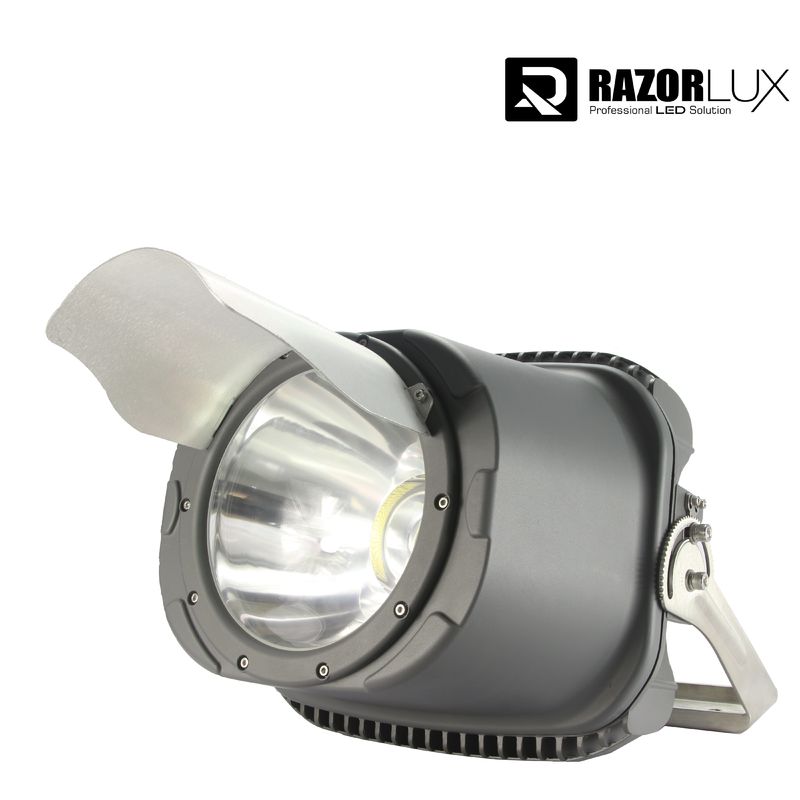

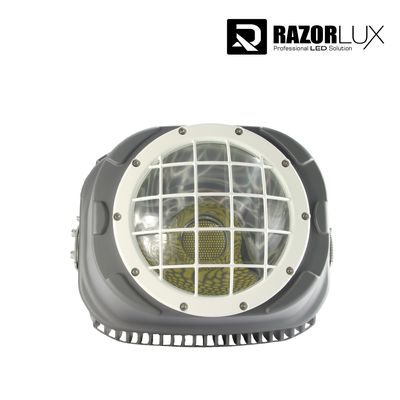

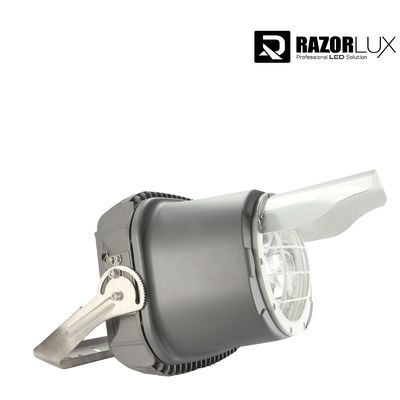

Marine LED Lights are high power flood and high mast lights designed with a specialized corrosion resistant finish that withstands the harsh salt water marine environment. Salt water ocean environments can be incredibly destructive on LED Lighting. These finishes provide a level of assurance and they can withstand these challenging environments for years.
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
| 1. 80% lumen maintenance over 50,000hours |
| 2. Wide Power range: 400W |
| 3. 110-480Vac input voltage without additional adapter |
| 4. Patent Built-in Serge Protection. |
| 5. Top chips high efficacy 120lm/w with meanwell driver |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. 0-10VDC, DALI and wireless control available |
| 11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed |
| 12. High uniformity & color rendering index |
Advantage:
1.Service:We also provide our client with lighting layout design and brightness calculation of projects ,Razorlux would be your first choice of professional Led lighting supplies.
2.Universival input without additional.
3.Meanwell driver,heat resistant for our power supply. It can working well on temperature at 55°C
4.Multi-function designed, flexible,you always find a combination fitting your projects perfectly.
5.Unique and elegant appearance,and patented heat dissipation technology.
6.Have cooperated with a lot of importers in EU markets more than 10 years.
7.Experienced in doing business with big customers.
9.Own designing team for new products development ,our products were developed by ourselves and we hold 125 patents.
10.We have passed the testing and got the ISO9001,TUV,LVD,SAA,CE,UL,DLC,CUL,Rohs certificates.
11.Different lens,reflectors ,and accessories,they can be varied beam angle mounting bracket,control system and etc.
Parameter:
| Model | RGL2-400P | |
| Beam Angle | 15° 20° 30° | |
Stable Flux | 48000lm | |
| Dimension (mm) | 466*388*487 | |
| LEDs | 360W | |
| Power | Driver | 40W |
| Consumption | Total | 400W |
| Replace HID Lamp | 400~600W | |
| Net Weight | 19kg with stainless steel floodlight bracket | |
| Color Temperature | 2700-6500K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum & Powder coating | |
| Power Supply | Meanwell | |
| IP Class | IP 65 (Upgradeable to IP 67) | |
| IK Class | IK 10 | |
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 110-480Vac input voltage without additional adapter | |
| DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 year |
| Driver | 5 year | |
| Housing | 10 year | |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Marine: Tugboats, towboats, offshore service vessels, offshore wind platforms and service vessels, ferries, barges, fishing vessels, patrol boats, shipyard cranes, offshore cranes, dredging equipment, shipyard cranes.
FAQ:
Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K
Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC
Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS
Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes.
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
