| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, RoHS, Saa, UL |
| Model Number: | RGL2-400A |
| Minimum Order Quantity: | 2 Pieces |
|---|---|
| Price: | $757.00/Pieces |
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units |
| Input Voltage(V): | 80~315Vac, (347Vac Available On Request) | CRI (Ra>): | 75 |
|---|---|---|---|
| Beam Angle(°): | 40° 60° 120° 140° | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum Alloy | IP Rating: | IP67 |
| Application: | ROAD | Light Source: | LED |

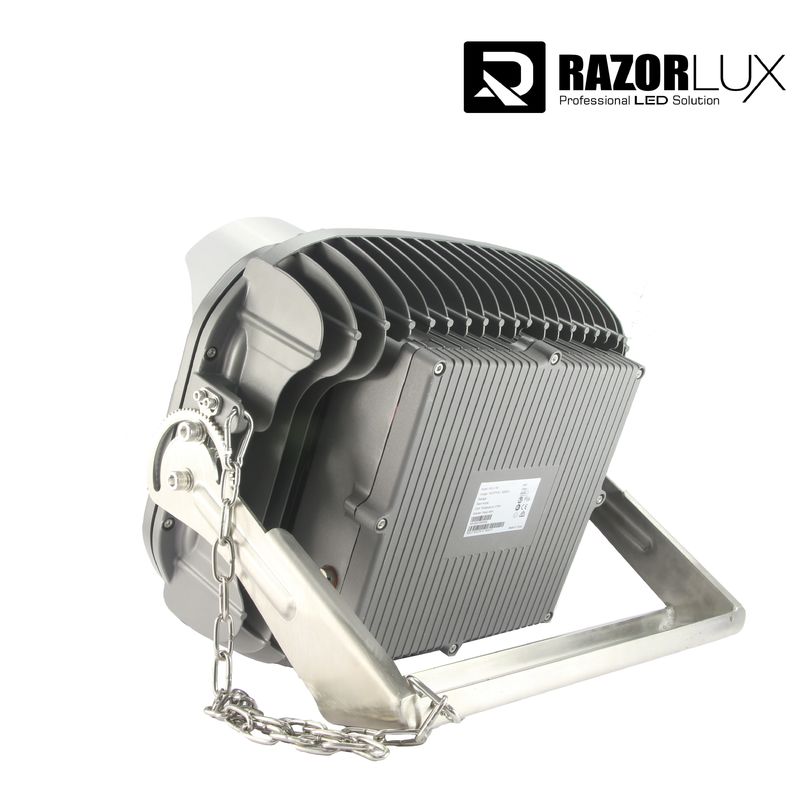

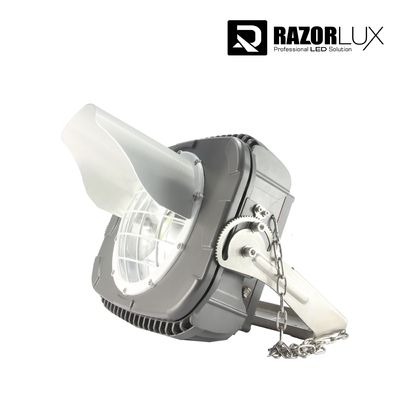

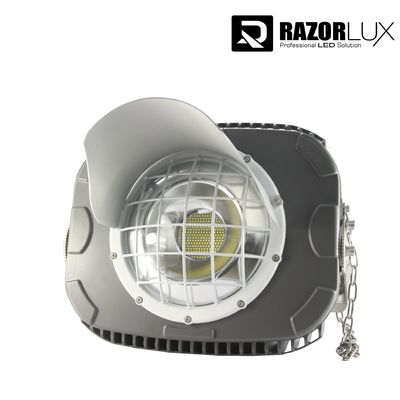

| Product Name: | Outdoor LED Flood Light 400W | Lamp Luminous Efficiency(lm/w): | 130 |
| Lamp Luminous Flux(lm): | 52000lm | Color Temperature(CCT): | Cool White |
| Working Temperature(℃): | -40 - 60 | Warranty: | 5Years |
| Housiong Material: | Aluminum | Working Life: | 50000 |
| IP Class: | IP 65 (Upgradeable To IP 67) | Color Temperature: | 2700-6500K |
| Highlight: | IP67 super bright security light,6500K super bright security light,400W super bright outdoor flood light |
||
Description:
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 140 degree)
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment.
No. 3 & 4: Dark Room for testing IES files and other Photometric datas.
1. Before and after sales in time service 7/24
2. Professional Lighting solution, DIALux simulation available
3. Payment terms: Paypal, TT, LC, DP etc
4. Shipment terms: FOB, CIF, CFR
5. Lead time: 5-7 working days
6. NO MOQ required, sample testing welcome
Features:
| 1. 80% lumen maintenance over 50,000hours |
| 2. Wide Power range: 400W |
| 3. 110-480Vac input voltage without additional adapter |
| 4. Patent Built-in Serge Protection. |
| 5. TOP chips high efficacy 130lm/w±7% with meanwell driver |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. 0-10VDC, DALI and wireless control available |
| 11. DLC, TUV CE RoHS, CB, SAA, LM79 listed |
| 12. High uniformity & color rendering index |
Parameters:
| Model | RGL2-400A | |
| Beam Angle | 40° 60° 120° 140° | |
|
Stable Flux (5700K after 1 hour) |
52000lm | |
| Dimension (mm) | 468*388*367 | |
| LEDs | 360W | |
| Power | Driver | 40W |
| Consumption | Total | 400W |
| Replace HID Lamp | 800~1000W | |
| Net Weight | 17.9kg with stainless steel floodlight bracket | |
| Color Temperature | 2700-6500K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum & Powder coating | |
| Power Supply | Meanwell | |
| IP Class |
IP 65 (Upgradeable to IP 67) |
|
| IK Class |
IK 10 |
|
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 110-480Vac input voltage without additional adapter | |
| DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 year |
| Driver | 5 year | |
| Housing | 10 year | |
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available. For Different application requirement, Razorlux Genius Series have different types of beam angles options.
Advantage:
1.Service:We also provide our client with lighting layout design and brightness calculation of projects ,Razorlux would be your first choice of professional Led lighting supplies.
2.Universival input without additional.
3.Meanwell driver,heat resistant for our power supply. It can working well on temperature at 55°C
4.Multi-function designed, flexible,you always find a combination fitting your projects perfectly.
5.Unique and elegant appearance,and patented heat dissipation technology.
Application:
Outdoor/Indoor, Stadium, Airport, Marine, Ship, Dock, Trawer, Harour, DECK,Mining, Industrial lighting, etc.
Marine: Tugboats, towboats, offshore service vessels, offshore wind platforms and service vessels, ferries, barges, fishing vessels, patrol boats, shipyard cranes, offshore cranes, dredging equipment, shipyard cranes
