| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, RoHS, Saa, UL |
| Model Number: | RGL2-300A |
| Price: | $533.00/Pieces |
|---|---|
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units |
| Support Dimmer: | YES | Lifespan (hours): | 50000 |
|---|---|---|---|
| Working Time (hours): | 50000 | Product Weight（kg）: | 12 |
| Input Voltage(V): | 80~315Vac, (347Vac Available On Request) | Beam Angle(°): | 40° 60° 120° 140° |
| Working Lifetime(Hour): | 50000 | Lamp Luminous Flux(lm): | 39000, 39000lm |
| Working Temperature(℃): | -40 To 60, -40 - 60 | Product Name: | 300 Watt High Mast Light |
| Highlight: | 39000lm Led High Mast Light,300 Watt Led High Mast Light,IP67 led high power lights |
||

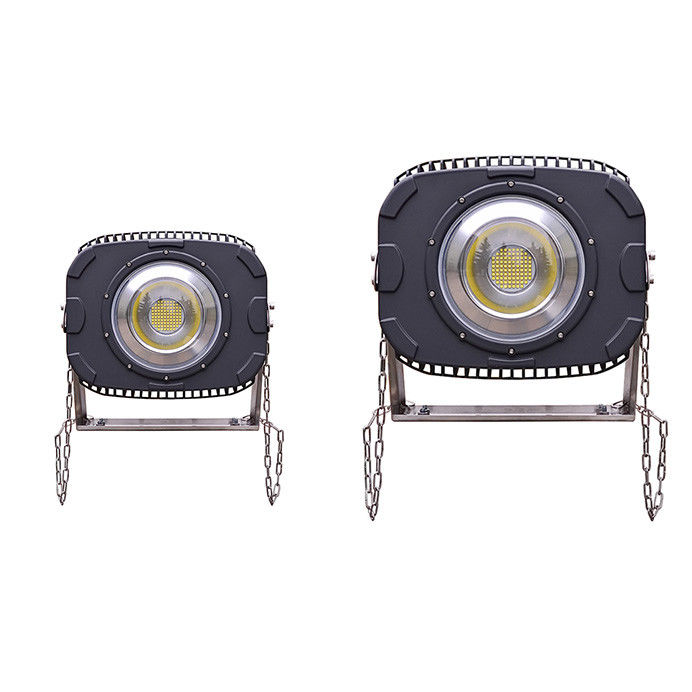

Hot Selling High Power Outdoor IP67 300 Watt High Mast Light
1. 80% lumen maintenance over 50,000hours
2. Wide Power range: 500W
3. 110-480Vac input voltage without additional adapter
4. Patent Built-in Serge Protection.
5. Top chips high efficacy 120lm/w with meanwell driver
6. IP67 waterproof, IK10 impact proof
7. Neutral Salt Spray Resistance
8. Anti-Corression power coating surface treatment
9. Stainless steel brackets material.(Upgradable to SS316)
10. 0-10VDC, DALI and wireless control available
11. DLC, TUV CE RoHS, CB, SAA, LM79 listed
12. High uniformity & color rendering index
LED High-Mast lighting for highways, interchanges, ports, rail yards, container yards, correctional facilities,
truck stops, water treatment plants, large area Industrial, airports, security lighting, toll plazas and sports lighting.
The fourth generation Holophane HMAO™ LED high-mast fixture provides long system life and up to 65% energy reduction over traditional HID products.
Razorlux offers the flexibility of multiple lumen packages, integrated control options, both roadway and area optical distributions,
all providing the customer choices on light levels and energy savings when replacing 400-1000+ watt HID products.
This LED high-mast fixture is designed to excel for both retrofit and new construction.
Available with a wide variety of advanced controls options as well as XVOLT feature to enhance power quality protection of 277-480V operation.
| Model | RGL2-300A | |
| Beam Angle | 40° 60° 120° 140° | |
|
Stable Flux (5700K after 1 hour) |
39000lm | |
| Dimension (mm) | 468*388*367 | |
| LEDs | 270W | |
| Power | Driver | 30W |
| Consumption | Total | 300W |
| Replace HID Lamp | 600~800W | |
| Net Weight | 17.9kg with stainless steel floodlight bracket | |
| Color Temperature | 2700-6500K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum & Powder coating | |
| Power Supply | Meanwell | |
| IP Class | IP 65 (Upgradeable to IP 67) | |
| IK Class | IK 10 | |
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 110-480Vac input voltage without additional adapter | |
| DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 year |
| Driver | 5 year | |
| Housing | 10 year |
|
Lighting Distribution:
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
|
Model |
G.W |
|
Genius II Compact 600W A Series |
19KGS |
Razorlux has very strict Quality Control System, from checking and evaluation of incoming materials to
the delivery of products, each item will be checked and tested for several times.
Quality Control - Testing Equipments:
| For every piece of Razorlux 200 Watt LED Flood Light are tested in different procedures. |
|
No. 1: Extreme temperature testing to make sure the lamps work stably and standardly under extreme temperature environment. (-40 to 60 degree) |
|
No. 2: Anti-Corrosion and IP67 Waterproof Testing, to make sure the products are working well even undern corrosive and Wetting environment. |
| No. 3 & 4: Dark Room for testing IES files and other Photometric datas. |
Quality Control - Aging Department:
For every piece of Razorlux Genius™ LED Lights, they will be aged for at least 72 hours before shipment
to make sure of their long term and stable performances within lifetime.
