| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, RoHS, Saa |
| Model Number: | RGL2-400P |
| Price: | $787.00/Pieces |
|---|---|
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units |
| Color Temperature(CCT): | 6000K (Daylight Alert), Cool White | Lamp Luminous Efficiency(lm/w): | 120, 120 |
|---|---|---|---|
| Color Rendering Index(Ra): | 80 | Lighting Solutions Service: | DIALux Evo Layout, Agi32 Layout, Auto CAD Layout |
| Working Time (hours): | 50000 | Product Weight（kg）: | 15 |
| Input Voltage(V): | 80~315Vac, (347Vac Available On Request) | Beam Angle(°): | 15° 20° 30° |
| Lamp Body Material: | Aluminum Alloy | IP Rating: | IP67 |
| Application: | Sports Stadiums | Lamp Luminous Flux(lm): | 48000, 48000lm |
| Working Temperature(℃): | -40 To 60, -40 - 60 | Warranty(Year): | 5-Year |
| Product Name: | Stadium Lighting | IP Class: | IP 65 (Upgradeable To IP 67) |
| LED Driver: | Meanwell | ||
| Highlight: | Saa Led Outdoor Sports Lighting,IP67 400W Led Outdoor Sports Lighting,6000K led gymnasium lighting |
||
LED sport court lights design is mainly to meet the needs of football, track and field, rugby, hockey and other sports. Football is not only on the ground, but also in the space of 10-30 m away from the ground.
Therefore, to maintain a certain brightness in all directions of a certain space height, the light distribution in the space below 15m above the football field should be very uniform.
Track and field competitions are mostly held in the range of about 3M above the ground. The LED sport court lighting of such sports facilities mainly meets the requirement of uniform light distribution on the ground.
| 1. 80% lumen maintenance over 50,000hours |
| 2. Wide Power range: 400W |
| 3. 110-480Vac input voltage without additional adapter |
| 4. Patent Built-in Serge Protection. |
| 5. TOP chips high efficacy 120lm/w with meanwell driver |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. 0-10VDC, DALI and wireless control available |
| 11. DLC, TUV CE RoHS, CB, SAA, LM79 listed |
| 12. High uniformity & color rendering index |

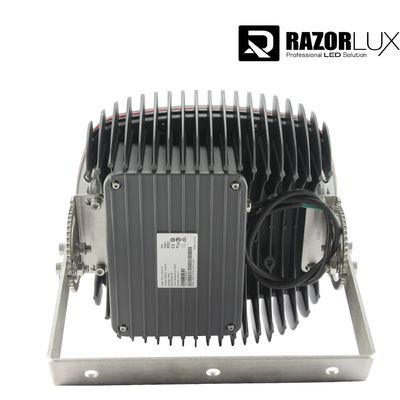

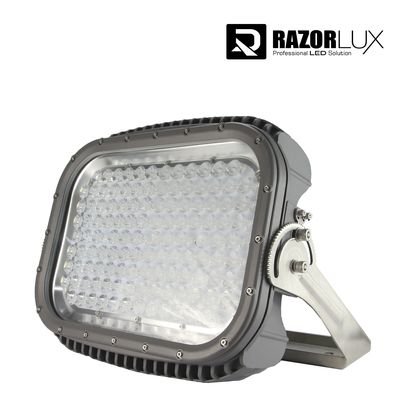

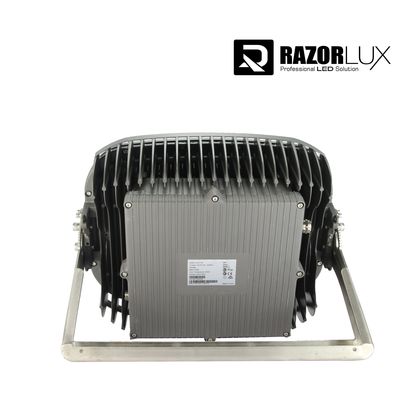

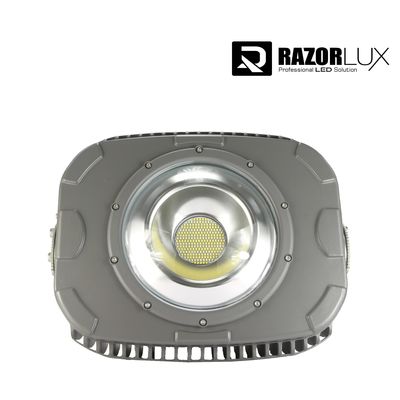

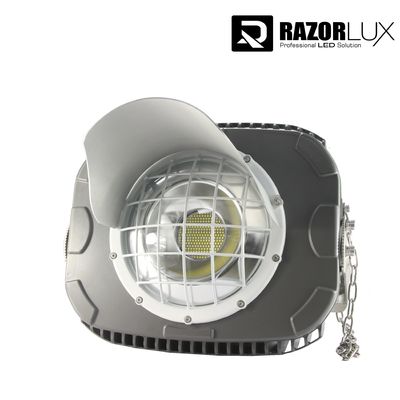

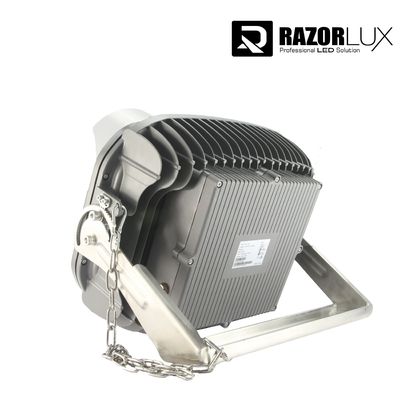

| Photos of Stadium Lighting: |
| Parameter of Razorlux Stadium Lighting: |
| Model | RGL2-400P | |
| Beam Angle | 15° 20° 30° | |
|
Stable Flux (5700K after 1 hour) |
48000lm | |
| Dimension (mm) | 466*388*487 | |
| LEDs | 360W | |
| Power | Driver | 40W |
| Consumption | Total | 400W |
| Replace HID Lamp | 400~600W | |
| Net Weight | 19kg with stainless steel floodlight bracket | |
| Color Temperature | 2700-6500K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum & Powder coating | |
| Power Supply | Meanwell | |
| IP Class |
IP 65 (Upgradeable to IP 67) |
|
| IK Class |
IK 10 |
|
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 110-480Vac input voltage without additional adapter | |
| DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 year |
| Driver | 5 year | |
| Housing | 10 year | |
| Lighting Distribution of Razorlux Stadium Lighting: |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Features & Specifications of 1-10V Dimmable led flood light 400Watt
FAQ:
1. Are you a factory or trading company:
We are a factory located in Xi'an China, established in 2006.
2. What is your product range?
Our wide product range includes floodlight, street light, pendant light, and power from 60W to 1200W.
3. How many days of production will the order take?
Normally 7-15 days, depending on the order quanity.
4. How do you ship goods abroad?
For sample, trial order, or small quantities we will suggest shipping by air, for large quantity and bulk order we recommend shipping by sea.
5. Does your product support smart control like sensor, dimming, DALI, etc.
They support all of these features, please tell our sales during your negotiation when you need such features.
6. How do you deal with failed lights?
During the warranty period, we will send customer free part or lamp after checking the evidence. After warranty, we only charge the component fees, no extra charge for our customer.
