| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, RoHS, Saa, UL |
| Model Number: | RGL2-400A |
| Price: | $10.00 - $767.00/Pieces |
|---|---|
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*415mm<br>3.One 20'' Container can accept 250 Units |
| Supply Ability: | 5000 Piece/Pieces per Month |
| Color Temperature(CCT): | 6000K (Daylight Alert), Cool White | Lamp Luminous Efficiency(lm/w): | 120, 130 |
|---|---|---|---|
| Color Rendering Index(Ra): | 80 | Lighting Solutions Service: | DIALux Evo Layout, Agi32 Layout, Auto CAD Layout |
| Input Voltage(V): | 80~305Vac,180-528vac | CRI (Ra>): | 75 |
| Beam Angle(°): | 40° 60° 120° 140° | Working Lifetime(Hour): | 50000 |
| Lamp Body Material: | Aluminum Alloy | Lamp Luminous Flux(lm): | 52000lm |

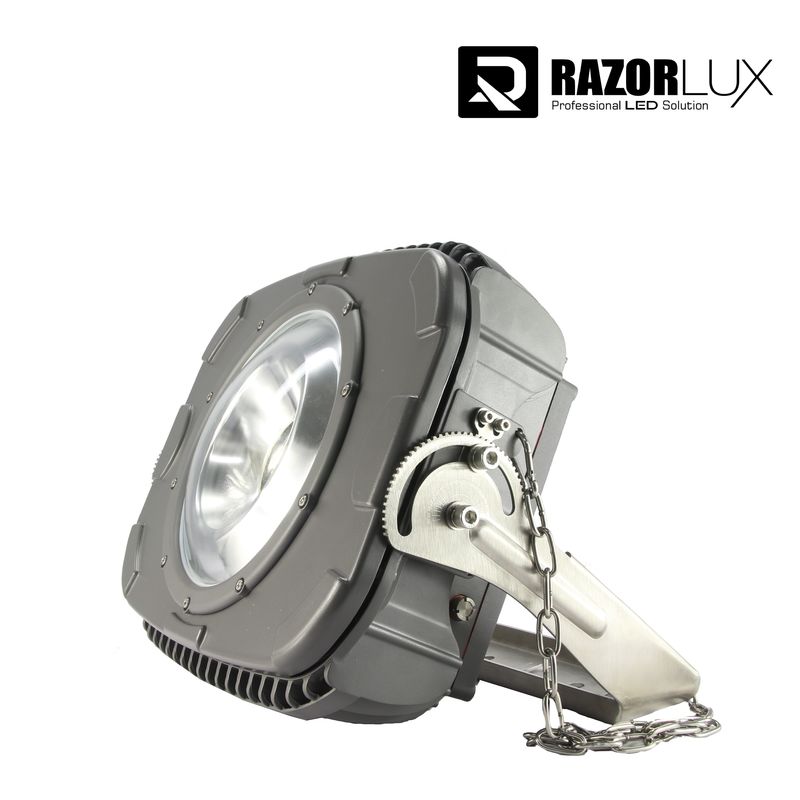

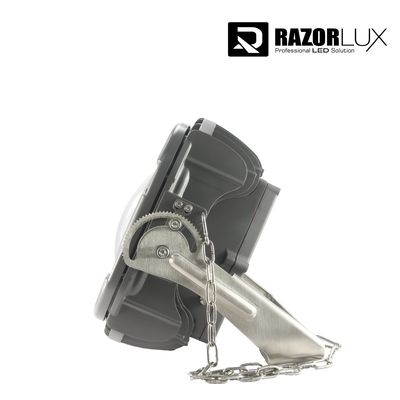

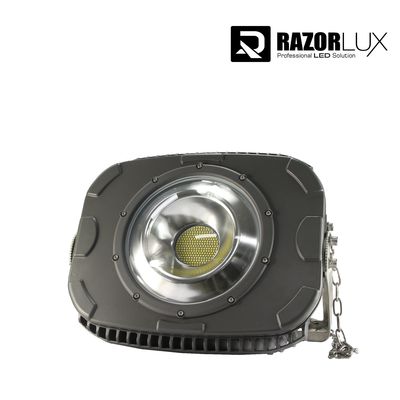

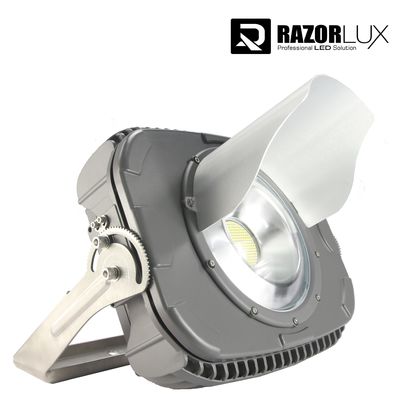

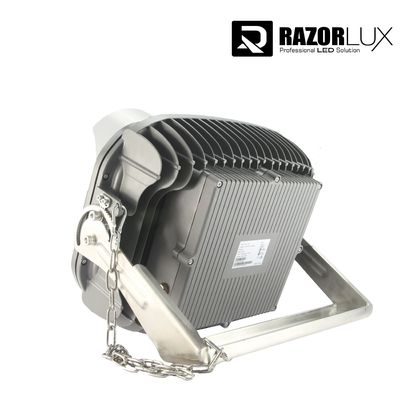

| Product Name: | LED Stadium Floodlights | Working Life: | 50000 |
| Highlight: | 52000lm Led Outdoor Flood Light,75ra Led Outdoor Flood Light,IP67 high lumen led lights |
||
Features:
| 1. 80% lumen maintenance over 50,000hours |
| 2. Wide Power range: 400W |
| 3. 110-480Vac input voltage without additional adapter |
| 4. Patent Built-in Serge Protection. |
| 5. Top chips high efficacy 130lm/w±7% with meanwell driver |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. 0-10VDC, DALI and wireless control available |
| 11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed |
| 12. High uniformity & color rendering index |
| Model | RGL2-400A | |
| Beam Angle | 40° 60° 120° 140° | |
|
Stable Flux (5700K after 1 hour) |
52000lm | |
| Dimension (mm) | 468*388*367 | |
| LEDs | 360W | |
| Power | Driver | 40W |
| Consumption | Total | 400W |
| Replace HID Lamp | 800~1000W | |
| Net Weight | 17.9kg with stainless steel floodlight bracket | |
| Color Temperature | 2700-6500K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum & Powder coating | |
| Power Supply | Meanwell | |
| IP Class |
IP 65 (Upgradeable to IP 67) |
|
| IK Class |
IK 10 |
|
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 110-480Vac input voltage without additional adapter | |
| DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 year |
| Driver | 5 year | |
| Housing | 10 year | |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
Application:
Outdoor/Indoor, Stadium, Airport, Marine, Ship, Dock, Trawer, Harour, Mining, Industrial lighting, etc.
Marine: Tugboats, towboats, offshore service vessels, offshore wind platforms and service vessels, ferries, barges, fishing vessels, patrol boats, shipyard cranes, offshore cranes, dredging equipment, shipyard cranes
FAQ:
Q1. Are you a factory?
YES, our factory in XI'AN established in 2010 with 50 workers and 10 engineers.
Q2. : Color temperature of the outdoor led high mast light?
3000/3500/4000/4500/5000/5700/6000/6500K
Q3: Certificates for the outdoor led high mast light?
CE(EMC + LVD) SAA ROHS UL DLC
Q4: How long is the lifetime for the outdoor led high mast light?
50,000HOURS
Q5: Lumens of the outdoor led high mast light?
100-130 LM/W Differs with different series
Q6: Warranty for the outdoor led high mast light?
5 years warranty depends on customers requests
Q7: What lamps can be replaced with the outdoor led high mast light?
Halogen,HPSL & compact fluorescent lamps.
Q8: Any intelligent options for the outdoor led high mast light?
0-10V PWM DALI PLC light control
Q9: Any OEM accessories can be provided when the standard one does not work for installation?
Yes, OEM/ODM support for the different application request.
Q10: Can I have our LOGO on the products and packages?
A: Yes.
Q11: How to deal with the faulty?
Our products are produced in a strict quality control system and the defective rate is less than 0.2%.
If a Quality problem happens, Return/Refund policy according to warranty agreement.
