| Place of Origin: | Shaanxi, China |
| Brand Name: | Razorlux |
| Certification: | ce, LVD, RoHS, Saa, UL |
| Model Number: | RGL2-1200P |
| Price: | $2,096.00/Pieces |
|---|---|
| Packaging Details: | 1.EPS Foam+carton(ONE UNIT PER CARTON) <br>2.Carton Size(mm):550*450*560mm<br>3.One 20'' Container can accept 250 Units |
| Color Temperature(CCT): | 6000K (Daylight Alert), Cool White | Lamp Luminous Efficiency(lm/w): | 120, 120 |
|---|---|---|---|
| Color Rendering Index(Ra): | 80 | Support Dimmer: | YES |
| Lighting Solutions Service: | Lighting And Circuitry Design, DIALux Evo Layout, Agi32 Layout | Working Time (hours): | 50000 |
| Product Weight（kg）: | 30 | Input Voltage(V): | 80~315Vac |
| Beam Angle(°): | 15° 20° 30° | Lamp Body Material: | Aluminum Alloy |
| IP Rating: | IP67 | Application: | Sports Stadiums |
| Light Source: | LED | Lamp Luminous Flux(lm): | 120000, 144000lm |
| Working Temperature(℃): | -40 To 60, -40 - 60 | Warranty(Year): | 5-Year |
| Product Name: | LED Outdoor Sports Lighting |
Main Features
| 1. 80% lumen maintenance over 50,000hours |
| 2. Wide Power range: 1200W |
| 3. 110-480Vac input voltage without additional adapter |
| 4. Patent Built-in Serge Protection. |
| 5. Top chips high efficacy 120lm/w with meanwell driver |
| 6. IP67 waterproof, IK10 impact proof |
| 7. Neutral Salt Spray Resistance |
| 8. Anti-Corression power coating surface treatment |
| 9. Stainless steel brackets material.(Upgradable to SS316) |
| 10. 0-10VDC, DALI and wireless control available |
| 11. UL cUL DLC, TUV CE RoHS, CB, SAA, LM79 listed |
| 12. High uniformity & color rendering index |

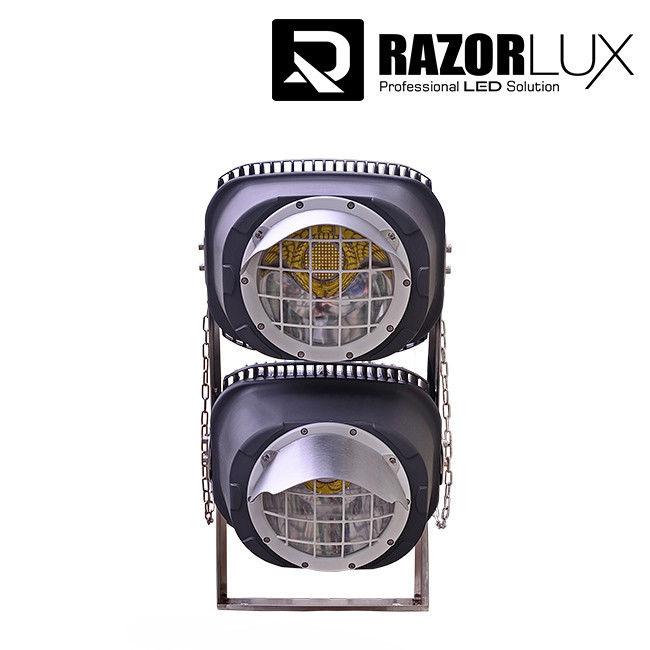

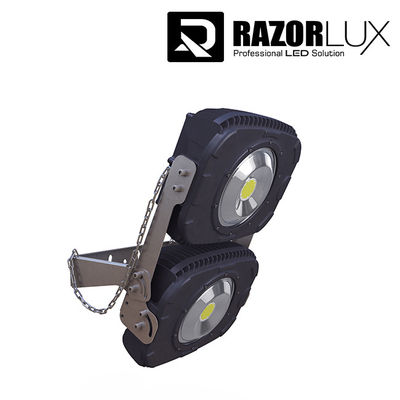

| Photos of LED Outdoor Sports Lighting: |
| Parameter of Razorlux LED Outdoor Sports Lighting: |
| Model | RGL2-1200P | |
| Beam Angle | 15° 20° 30° | |
|
Stable Flux (5700K after 1 hour) |
144000lm | |
| Dimension (mm) | 474*388*982 | |
| LEDs | 1080W | |
| Power | Driver | 120W |
| Consumption | Total | 1200W |
| Replace HID Lamp | 2500~3000W | |
| Net Weight | 38kg with stainless steel floodlight bracket | |
| Color Temperature | 2700-6500K | |
| Color Rendering | ≥Ra75 (≥Ra80, ≥Ra90 available on request) | |
| Working Life | ≥50000Hrs | |
| Housing Material | Aluminum & Powder coating | |
| Power Supply | Meanwell | |
| IP Class |
IP 65 (Upgradeable to IP 67) |
|
| IK Class |
IK 10 |
|
| Insulation Class | Class I | |
| Working Temperature | -40C ~ 60C / -40F ~ 140F | |
| Working Humidity | 10% ~ 95% | |
| AC Input | 110-480Vac input voltage without additional adapter | |
| DC Input | 100 ~ 400Vdc, 500Vdc ~ 800Vdc | |
| THD | <10% | |
| Power Factor | ≥0.98 | |
| Warranty | LED Module | 5 year |
| Driver | 5 year | |
| Housing | 10 year | |
| Lighting Distribution of Razorlux LED Outdoor Sports Lighting: |
For Different application requirement, Razorlux Genius Series have different types of beam angles options.
at the moment we have 15° 20° 40° 60° 120° 140° beam angle available.
| Certificates of Razorlux LED Outdoor Sports Lighting: |
Features & Specifications of 1-10V Dimmable led flood light 400Watt
